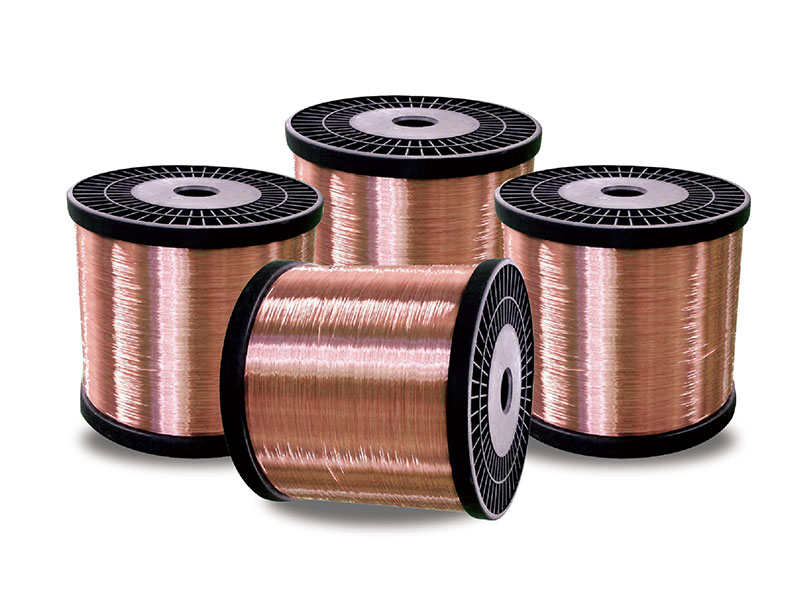

Copper Clad Aluminum Magnesium Wire (CCAM Wire)

  • Copper Clad Aluminum Magnesium Wire (CCAM Wire)

  • CCAM wire is an acronym for copper clad aluminum magnesium wire, which is a bimetallic wire consisting of an aluminum magnesium alloy core and a concentric copper cladding with a CU purity of 99.9%. Huawang CCAM wire is newly developed and manufactured in-house. Using ultra-high strength rare-earth aluminum alloy as the core and combined with an outer layer of electrical grade copper, makes stronger tensile strength of 180-250Mpa, while the density is only 2.85g/cm3. Compared to previous generation of copper clad aluminum magnesium wire, this CCAM wire is about 30% longer at the same weight. As it turns out, production cost has been reduced by approximately 30%. Currently Huawang can produce 15,000 tons of CCAM wire per year, and the product fully complies with ASTM B 566-93 standard.

CCAM wire diameter: 0.1mm-6.0mm

Applications
High Frequency Signal Transmission Cable
  • Conductor of coaxial cable for television signal distribution
  • Conductor of 50Ω RF cable
  • Conductor of various data cables, such as phone cable, electronic cable, printer cable, network cable, USB cable, etc.
  • Conductor of micro coaxial cable
  • Conductor of audio and video cable
Power Transmission Cable
  • Conductor of power cable
  • Conductor of control cable
  • Conductor of automotive cable
  • Conductor for building wiring
Technical Parameters
Bonding Plating CCAM
Diameter (mm) 0.10-6.0
Copper by weight (%) 6-15
Tensile Strength (Mpa) 180-250
Elongation (%) 5
Conductivity (%) 37
DC resistivity (Ω.mm²/m) 0.047
Density (g/cm³) 2.85

Huawang CCAM wire can be customized according to special requirements.
Spool size: DIN 130, DIN 160, DIN 185, DIN 200, DIN 250, DIN 400; DIN 500, DIN 630, DIN 780;

Founded in 2006 as a metal wire manufacturer, Huawang specializes in engineering and manufacturing a broad range of bimetallic compounds that can be used as various types of composite conductors in electrical and electronics industry. Our extensive portfolio of specialty wires includes magnet wire, bare wire, stranded wire, busbar, etc. We have deep passion and aim to be associated with customers who are looking for cable conductors, coil wires, winding wires, or lead wire for their electronic components.

Capability
  • Capability

  • Huawang offers a broad range of high quality wires and raw materials including bare wire, busbar, stranded wire, tinned wire, silver plated wire, enameled wire, copper clad aluminum, copper clad steed, etc. We have a large inventory of wires of various specifications for quick delivery. Besides, we can also respond quickly with products tailored to your specific needs.
